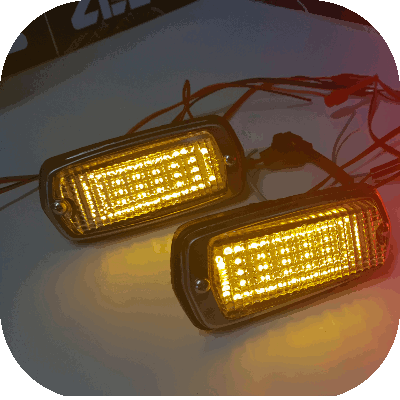

Datsun Fender LED Reflectors

Upgrade your Datsun with a modern OEM-style look using our custom LED reflector panels! Designed for a clean fit and bright output, these panels bring added style and safety while maintaining a classic appearance. Each unit is plug-and-play for standard functions, with an optional second input for advanced configurations like switchback behavior.

✅ What’s Included

• 2x Brand New Reflector Housings (LH & RH)
• 2x Rubber Gaskets (Seals)
• 2x Lenses (Choose your color)

🔧 Specifications

• Application Compatibility:
  510, 240Z, 260Z, 280Z, 120Y, B210, 1200
• Model: DFR v2
• LED Count: 111 High-Efficiency LEDs per reflector
• Available Lens Options:
  • Clear
  • Red
  • Amber
• Functions:
  • PARK – Plug-and-play
  • BRAKE – Requires additional 12V signal wire
  • SWITCHBACK (Optional): Requires a second signal input

💡 Installation Notes

These panels are designed for a direct fit into the factory mounting points. The modified reflector will come pre-wired with three color-coded leads:

• Black – Ground (0V)
• Green – 12V Running Lights (PARK)
• Yellow – 12V Turn Signal Input

Simply connect each wire to its corresponding signal source. For basic functionality, only the Ground and Running Light wires are required. Connect the Yellow wire if using the turn signal function.

🛡️ Warranty

Includes a 1-Year Limited Warranty against manufacturer defects. Review our warranty page for full details.

❓ Questions?

Need help or more info? Contact us here and we’ll assist you with your build.
