🔧 ZLEDS DIY Retrofit Plug & Play Conversion Kit

For Nissan Skyline R32 GTST / GTR 2DR (1989–1994)

Modernize your OEM tail lights with our in-house custom-engineered LED retrofit kit! This DIY kit transforms your factory setup with a stunning modern look, available in multiple functionality stages based on your preference.

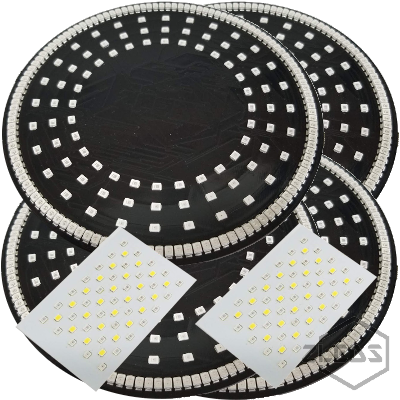

📦 What’s Included:

• 4× Round LED Panels
• 2× LED Turn Signal Panels
• 1× ZLEDS LED Controller
• Optional: Acrylic Overlay Panel (multiple finishes available)

⚠️ Lead Time:

3–6 weeks, depending on selected stage and part availability.
All orders are made-to-order. Contact us for confirmation before purchase.

🧰 Stage Options:

▶️ Stage 1 – Basic Functional

• Mimics factory behavior using LEDs
• Clean OEM look with no animations
• Reliable, simple, plug-and-play retrofit

🌟 Stage 2B – Enhanced Effects

Includes everything in Stage 1, plus animated effects:

• Startup Animation – A short visual animation plays when parking/running lights are turned on
• Bullseye Brakes – Brake LED rings illuminate sequentially from smallest to largest
• Showcase Strobes – Add strobing effects for events or meets

💻 Stage 3B – Full Custom Control

• Program your own effects using the ZLEDS Bit Editor App
• Customizable running light animations, turn signals, brake effects, and strobes
• Store multiple presets and switch between them via the app

🕴️ Acrylic Overlay Options (Optional)

Add a finished, clean look to your retrofit with our optional acrylic cover.

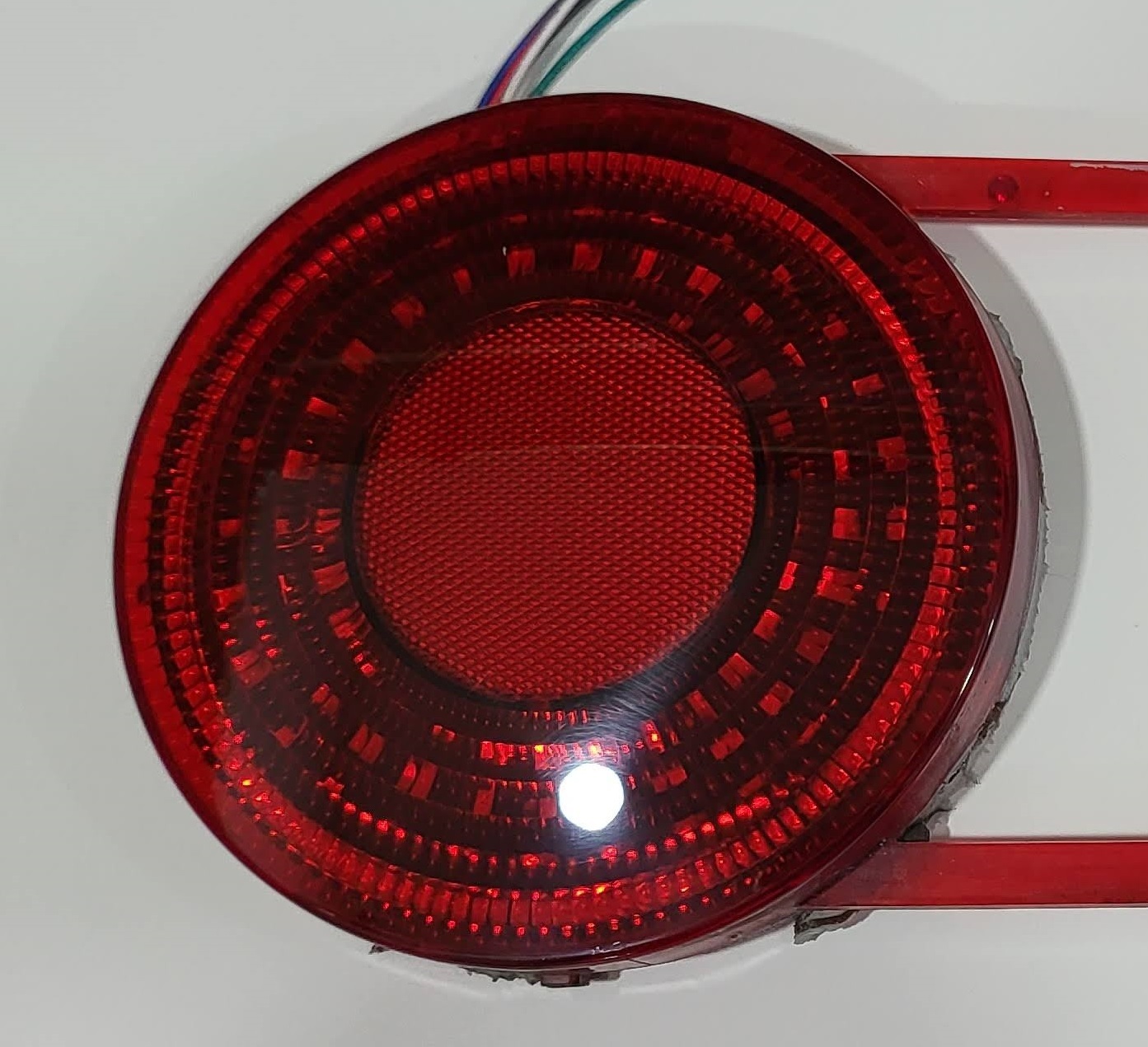

No Acrylic / Black

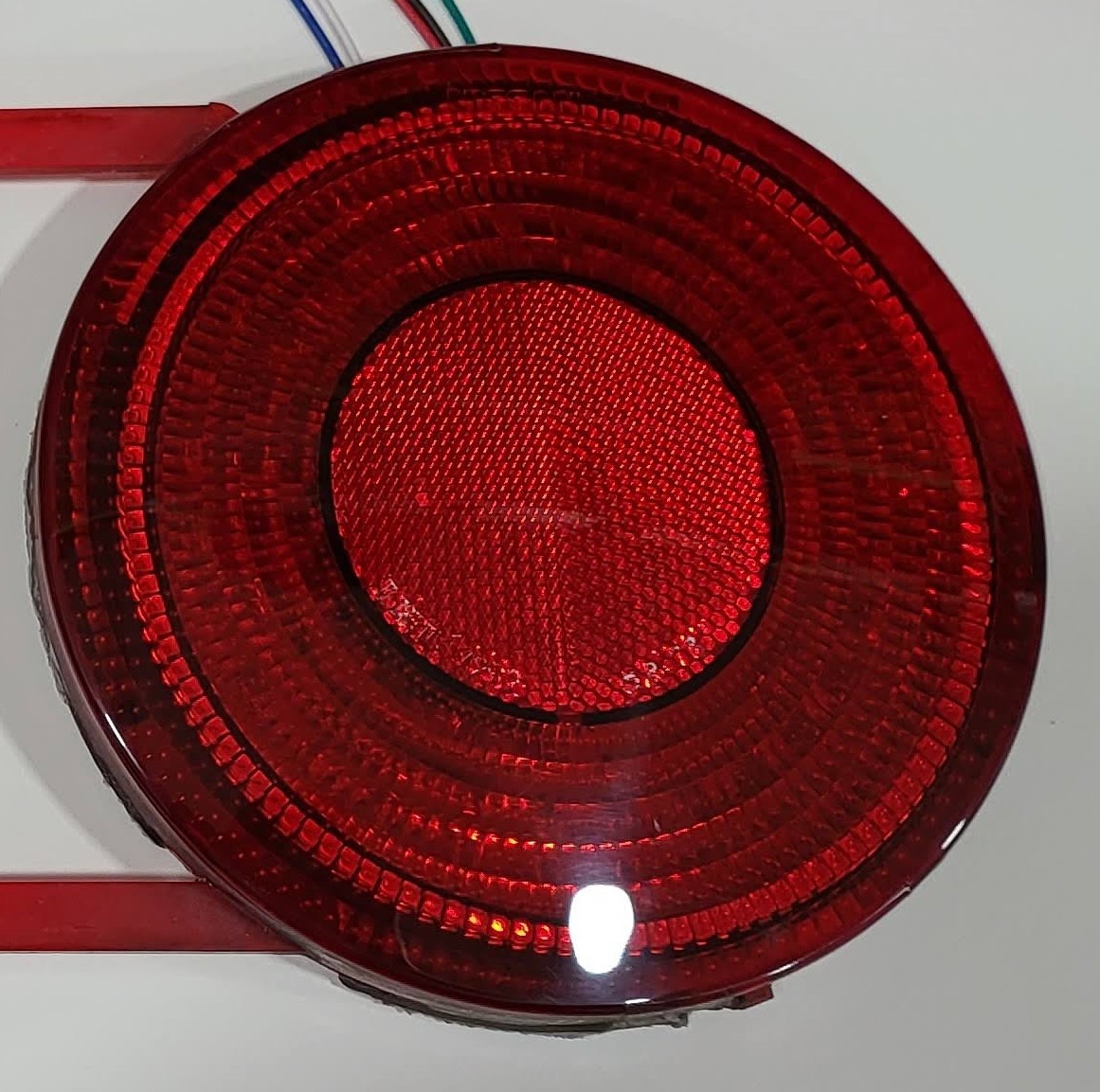

Incognito Finish – Smooth polished lens appearance

❓ Frequently Asked Questions:

Do I need load resistors?
✅ Yes. Load resistors are required to prevent hyperflashing when replacing halogen bulbs with LEDs. Alternatively, you can replace your OEM flasher relay with an LED-compatible one.

How do I secure the LED panels?

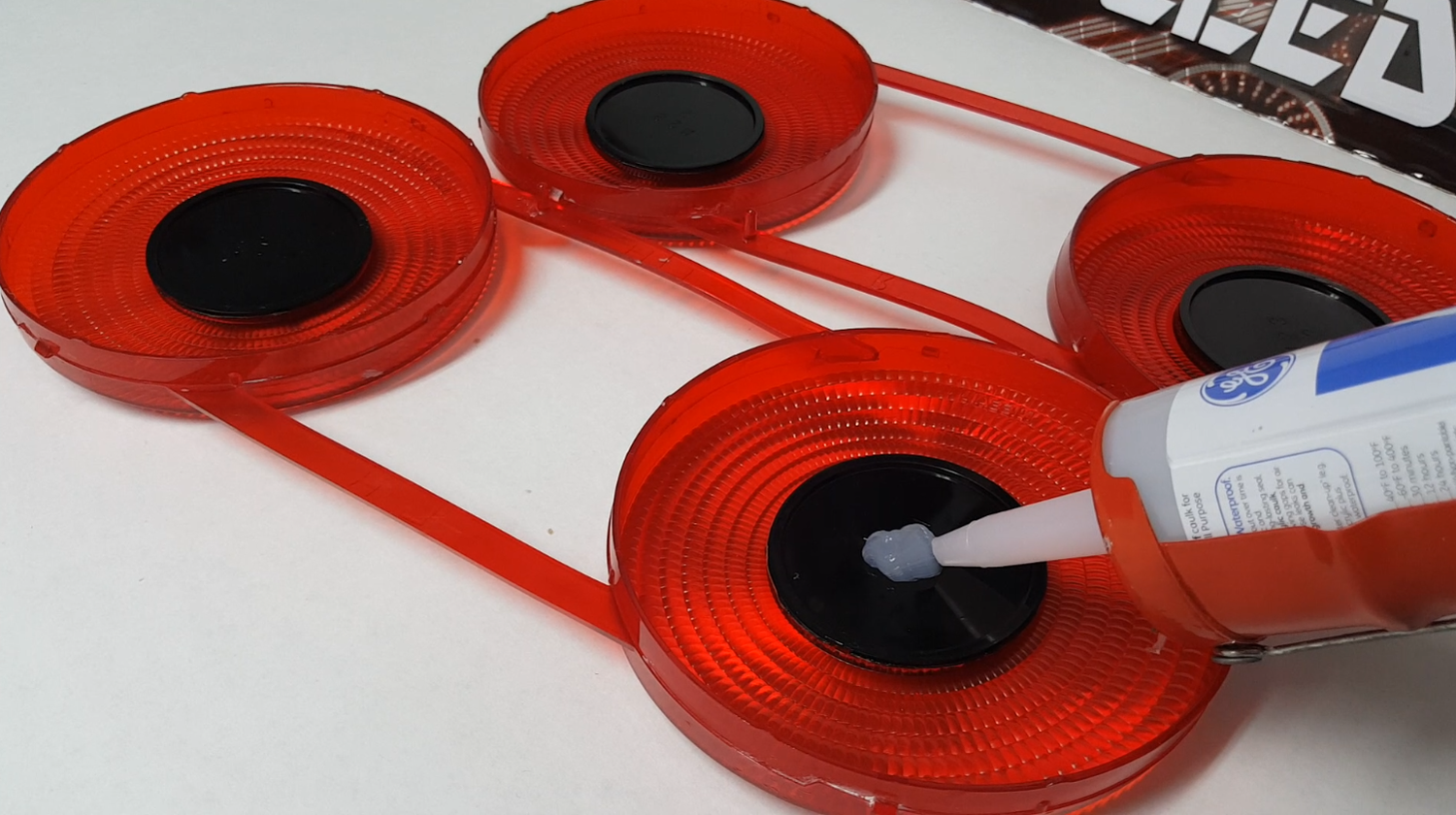

Use standard RTV silicone to attach panels to the lens. For best results, mount the panels directly onto the lens, not the housing/bucket.

Is there a warranty?
Yes! We offer a 1-year limited warranty on DIY parts.

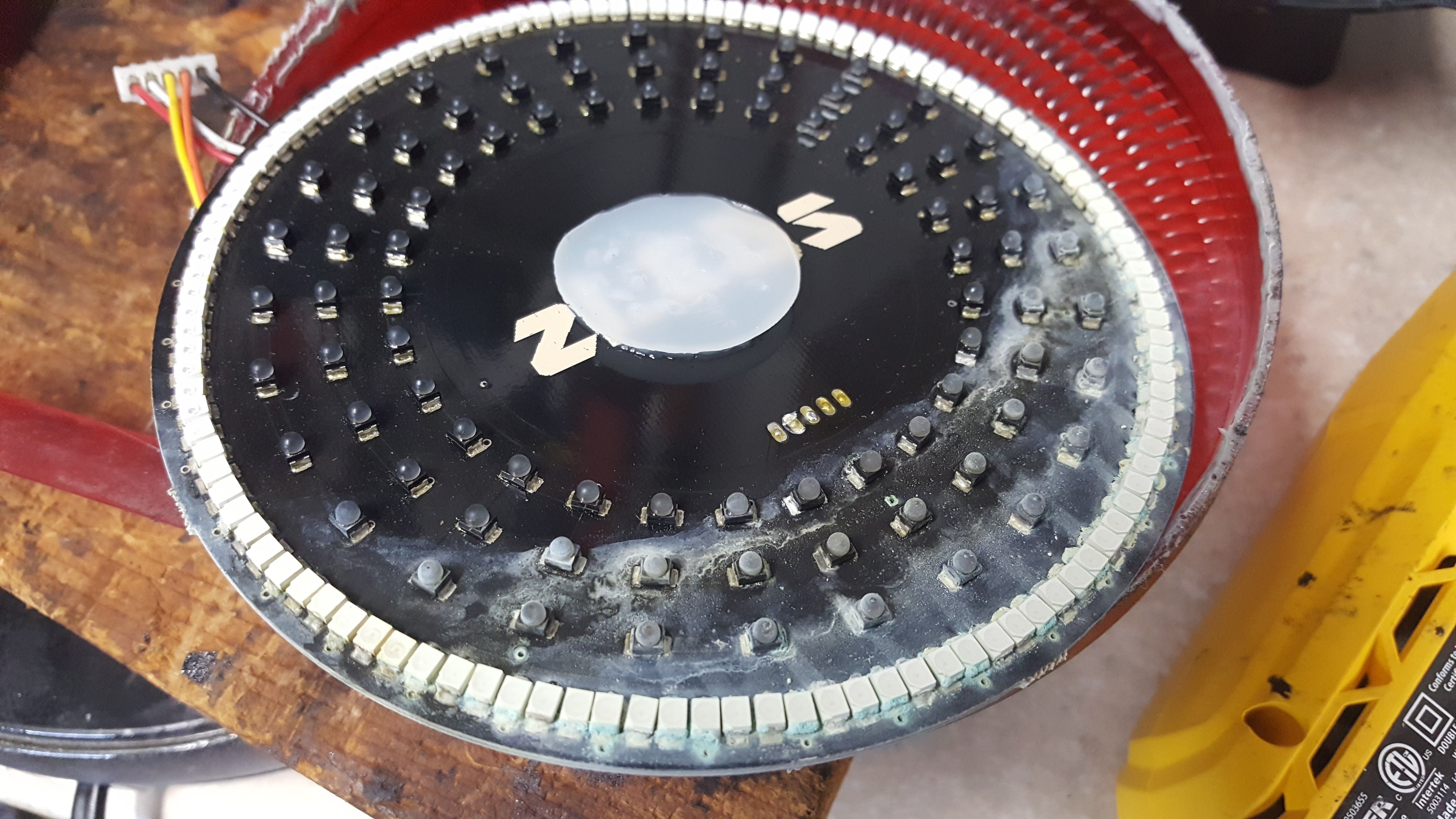

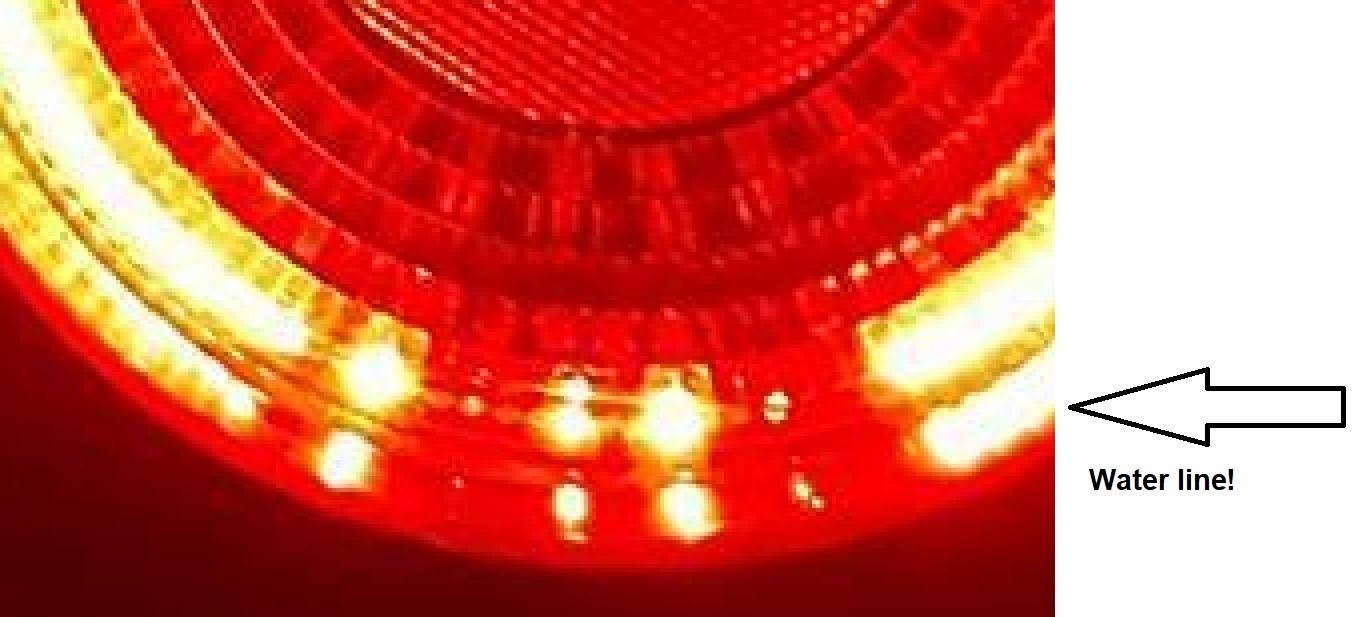

Note: Warranty is void if water intrusion is detected or if damage is due to improper handling. Defective parts must be shipped in for service.

💪 Installation Tip:

For ideal light diffusion and alignment, always secure the LED panels directly to the lens using RTV.

YouTube Demo

🎥 Demo Videos:

🚨 Limited Warranty Notice for DIY Kits:

Water intrusion or mishandling voids warranty.
We strongly recommend professional installation. Review our Limited Warranty here.
