Switchback LED Driver
SKU D.LSB
$15.63
Ready to order? Contact us!
Price incl. Processing Fee (4.2%) $0.63
Model
Ready to order? Contact us!
Save this product for later
Switchback LED Driver
Product Details
Switchback LED Driver
DESCRIPTION
This small compact driver works perfectly for automotive applications ranging from DRL/SIGNAL to BRAKE/SIGNAL. The driver works with a common ground configuration and switches high side voltage from Channel P(PARK/RUNNING) to Channel S(SIGNAL).
INCLUDED:
- x1 Switchback Drivers
FEATURES:
- Small Size 30mm x 14mm
- Power Rating : 500mA per output
- On board indicator LEDs

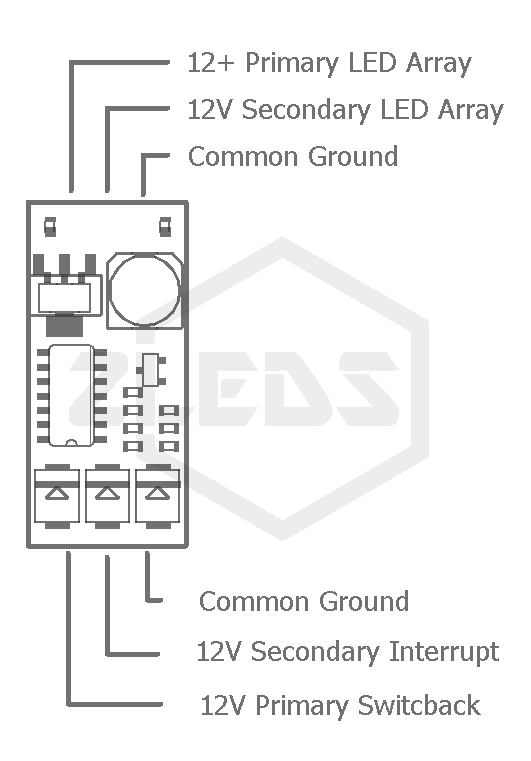

- INPUT
- (+) Primary Input / GREEN WIRE
- (+) Secondary Input / RED WIRE
- (-) Ground / BLACK WIRE
- OUTPUT
- (+) Primary output / WHITE WIRE
- (+) Secondary output / YELLOW WIRE
- (-) GROUND / BLACK WIRE
