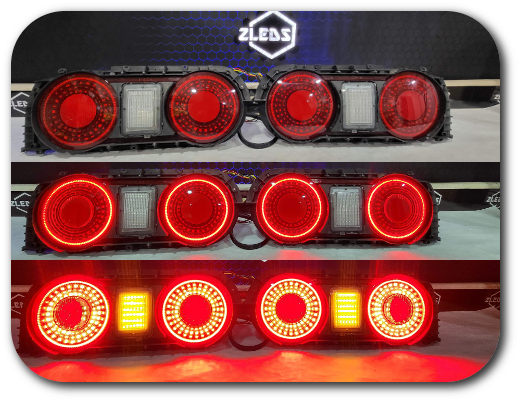

Nissan R32 Tail Light ZLEDS Conversion

---

Retrofit Service	In order to speed things up we ask you to please clean your tail lights upon packing! Dirty assemblies will delay your project! Be sure to use a durable box since we’ll be reusing the same box to return the finished product! ZLEDSLIGHTS.COM 2330 E. Freddy Gonzalez Dr PMB50 Edinburg,Tx,78542
Modified Tail Light	We can provide you with a set of OEM tail lights and install the kit for you! The tail light assemblies are considered USED however they have been cleaned up and restored.

Choose the right stage for you!

Stage-1	This kit provides the OEM function with NO sequences or special effects and its purely functional!
Stage-2	This kit provides all the OEM functions with preset animated sequences. Startup -This quick animation will occur when you initially turn ON your parking/running lights! Bulleyes Brakes - When the Brakes is activated the LED Rings will light up in sequence from smallest to biggest! Showcase - The showcase function will make you stand out from the common crowd by making your custom lights do a variety of strobing effects.
Stage-3B	Mobile App Programmable LED Halos using our Bit Editor App
Stage-4B	Mobile App Programmable LED Sectors using our Bit Editor App

	Stage 1	Stage 2	Stage 3	Stage 4
Original Functions

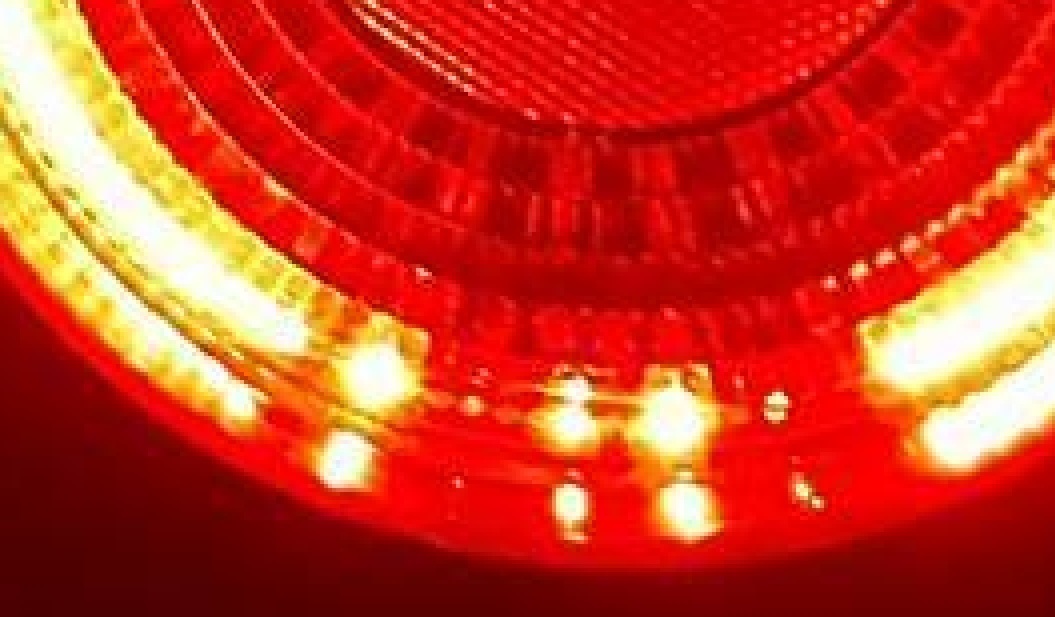

Sequential Bulleyes Brakes
Showcase Strobes
Programmable LED Halo Configuration
Programmable LED Sectors Configuration

FAQ

• Do you ship to my region? -- Yes, we ship world wide using USPS Express Services.
• Do I need load resistors? -- In most cases, yes you will need 1 load resistor per side to prevent hyper flashing. You can avoid this electrical load by replacing your flasher unit to a LED/Digital model.
• How do I fix the LED panels in place? -- You can use standard RTV Silicon to fix them in place. Please note, to get the best effect we recommend fixing them onto the lense itself and not the bucket.

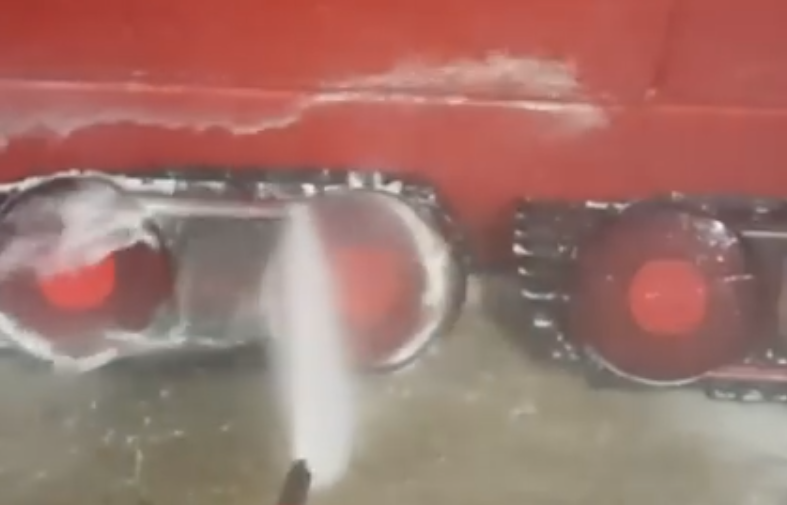

• Is there any Warranty on the parts? -- Yes, parts have a 1 year limited warranty. In the event of a burned LED, you'll be required to ship the defective part for service! Warranty shall not apply to any product that is found damaged due to water intrusion!

---

Installation Demo

---

DIY Kit with Yellow/White LED Panel

---

Stage 2 Demo

---

Stage 3 Startup Demos

---

Stage 3 Brakes Functions

---

Stage 3 Signal Options

---

Stage 4 Demo

---

Stage 4 Showcase Demo

Model:	R32 RLC II v1.5
LED Type	123 Wide Angle Outer LED Halo 84 Inner High Flux LEDs

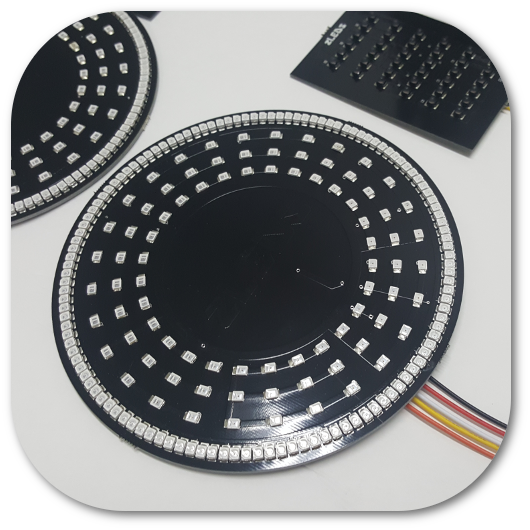

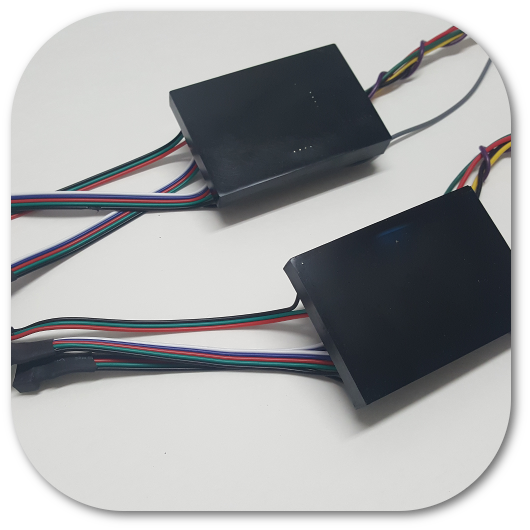

What's included	x4 Round LED Panels x2 Signal LED Panels ( OPTIONAL) DigiC Driver(s)

---

Looking for a different design? No problem! We can design a whole new layout and use as many LEDs you want! Check our FAQ for more info!

---

PLEASE NOTE: LIMITED WARRANTY NOTICE FOR DIY Kits!!

In the event of a burned LED, you'll be required to ship the defective part for service! Warranty shall not apply to any product that is found damaged due to water intrusion! Professional installation is highly recommended!

---
