ZLED D40 Logic Driver
Store/DIY Parts
Product Details

ZLED DigiC40 Bluetooth Driver


The DigiC40 is our latest control module with 40 high-side output channels and 5 self-powered inputs! Unlike our predecessor controllers that required in-house programming service, the DigiC40 controller can be reprogrammed using our ZLED Bit Editor Application! You simply select which channel bits(1-40) and upload the new configuration using Bluetooth technology. Functions include but are not limited to Park / Running, Brakes, Turn signals (s), Aux, and strobes.


What's included?

  • x1 DigiC40 Controller
  • Customer Email Support
  • Cloud Base Default Presets

Features and Functions

  • Programmable 40 High Side Outputs
  • Adjustable PWM Brightness for each sequence
  • Adjustable Sequence Speed for each sequence
  • Optional Loop
  • Remote Switch Function Activation
  • Programmable Delay Switchback

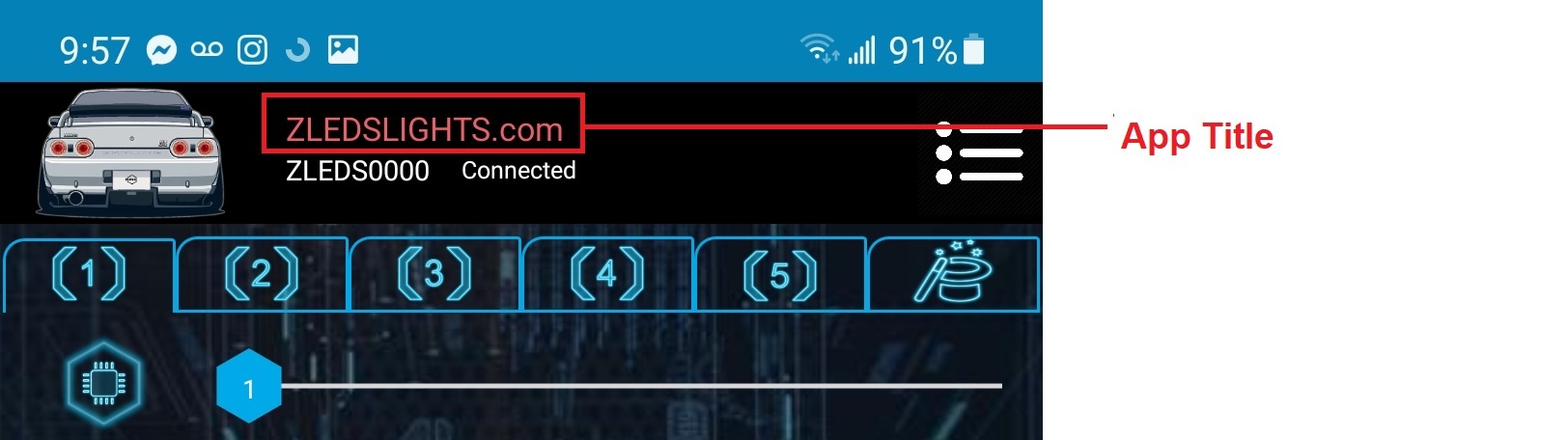

  • Preprogrammed App Title

Hardware Features

  • On-board LED indicators
    • Power ON
    • 1-40 Channel Bit LEDs
  • Overcurrent output protection
  • Thermal Auto Shutdown Protection
  • Positive High Side Outputs
  • Common Ground

Technical Specs

Operating Voltage 5V-15V
Output Voltage (INPUT-1.7)
Current Max per channel bit 500mA*
Aux Power Supply Operating Voltage
Standby Power Consumption 2mA
Self Powered Inputs 5
Anode Outputs 40
Dimensions 70mm X 89mm

*Total current consumption must be kept below 3A per input! Gain an additional 3A by powering the device with the aux power connection.

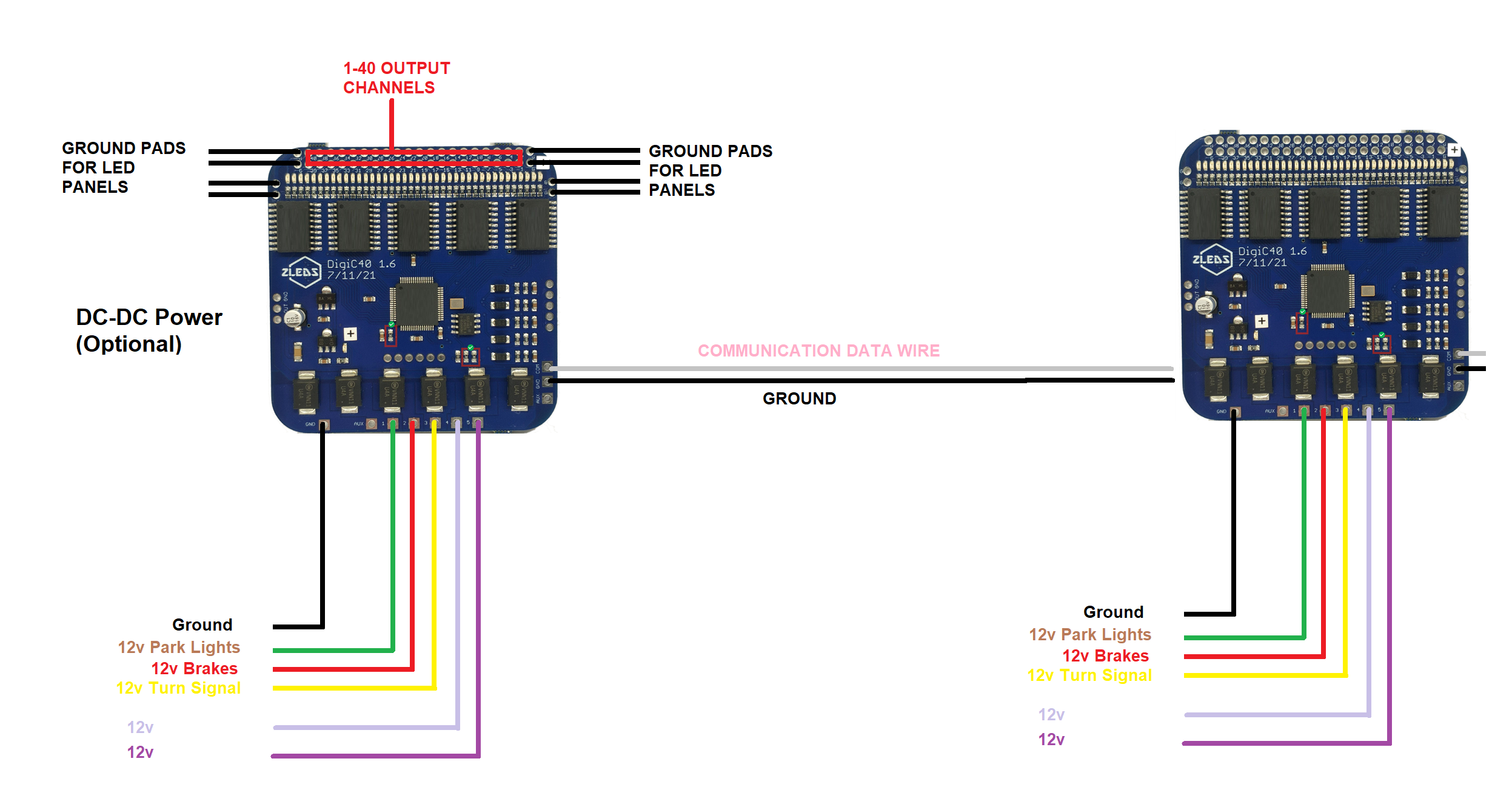

Wiring Diagram
